Projected Field HTS Magnet

PF-1G (Bi-2223): Achieves up to 2.6  T ~1 mm above the surface, ~3-phase input (~3.6–5.6 kW), very compact at field pole.

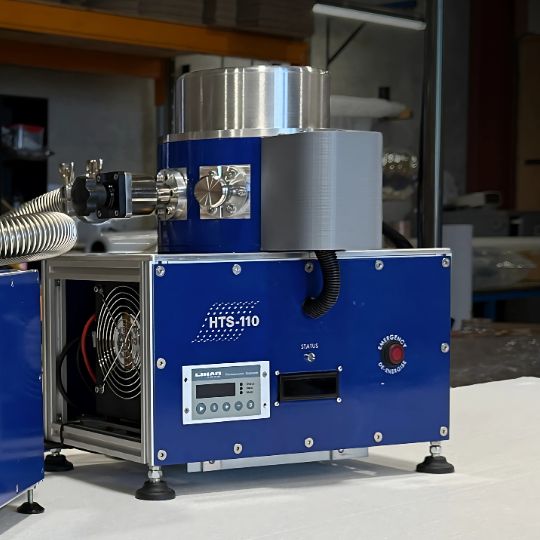

PF-2G (ReBCO): Offers a peak field of >2.0  T ~2 mm above the surface, at just 26 kg total mass. Consumes <400 W on a single-phase outlet and ramps in under 1 minute—making it a genuine benchtop, maintenance-free solution.

Enquire (reserve stock)

Features

HTS-110’s Projected Field magnet platform delivers 2+ T performance in a compact, bench-top format—ideal for scanning probe (SPM), tunneling microscopy (STM), spintronics, and more. By concentrating the field just above the pole tip, each system provides a uniform, easily accessible region with minimal vibration.

The newly released (March 2025) PF‑2G model leverages second-generation HTS wire technology and an integrated cryocooler, requiring only a standard single-phase outlet. This truly benchtop approach simplifies installation and reduces operational overhead—perfect for labs prioritising fast ramps, low noise, and broad sample access.

Projected Field Geometry. Creates a stable region just above the magnet for unobstructed sample positioning.

Low Vibration. Minimises mechanical noise for sensitive AFM, MOKE, and magneto-optic studies.

High Thermal Stability. HTS (ReBCO or Bi2223) minimises quench risk and simplify cryocooler loads.

Cryogen‐Free. Eliminate liquid helium, simplify logistics and cut overhead costs.

Compact & Portable. Integrates onboard cryocooler in a 15 kg or 55 kg system—simple bench setups.

Benchtop Power. PG-2G runs <400 W on single-phase supply.

Model Specifications

Parameter

PF-1G

PF-2G

Peak field / Field Strength

~ 2.6 T

> 2.0 T

Axial 5G fringe field distance

1100 mm

Radial 5G fringe field distance

800 mm

Ramp time

90 seconds (4 quadrant)

< 1 minute

Magnet inductance

0.2 H

Max. current

70 A

Conductor Type

Bi-2223 (HTS)

ReBCO (2nd Gen HTS)

Mass

52 kg

26 kg

Dimensions (L x W x H)

857 x 271 x 428 mm

412 x 234 x 360 mm

Power requirements

~ 4.3 kW (three-phase)

< 400 W (110-240 V AC single-phase)

Model Selection

Model

Peak Field

Ramp Time

Power

Mass

Indicative Price

Est. Delivery Time

PF-2G

>2.0 T @ ~2 mm above surface

< 1 min

<400 W, single-phase

26 kg

$130,000 USD

0-6 months

PF-1G

2.6 T @ ~1 mm above surface

~ 1 min

3‑phase (3.6–5.6 kW)

52 kg

$170,000 USD

8-10 months

Complete Turnkey System: Includes magnet, power supply, cryocooler, monitoring electronics, interconnecting cables, warranty and hoses.

Designed for Applications:

Spintronics & MRAM: Swift domain manipulation with minimal vibration
SPM / STM: Easy above-sample geometry, quiet operation
Magneto-Optic & AFM: Rapid ramp cycles for advanced imaging or domain structure studies
Hall Effect & Transport: Quick field sweeps, stable temperature management

ENQUIRY AND DELIVERY PROCESS: READY TO ORDER (TURNKEY)

Initial consultation/enquiry. Discuss your needs to confirm a turnkey solution is a good fit.
Application and options assessment. Verify specs and supply a firm quote with lead time, and reserve stock or manufacturing capacity.
Production and testing. We build, test, and QC the system to rigorous standards.
Delivery and integration. On-site installation and operational training, plus lifetime support.

For most labs, PF‑2G is recommended if you need a lower-power, truly bench-top magnet with 2+ tesla fields and sub-400 W usage. If peak field ~2.6 T is essential and 3‑phase power is available, PF‑1G offers a robust alternative.

Discuss how a Projected Field HTS Magnet can elevate your next project—from pilot spintronic tests to routine advanced microscopy. Contact HTS-110 to confirm pricing and secure lead times, or explore specifications, integration and customisation options.
