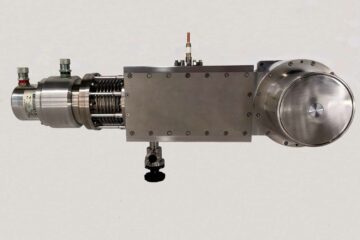

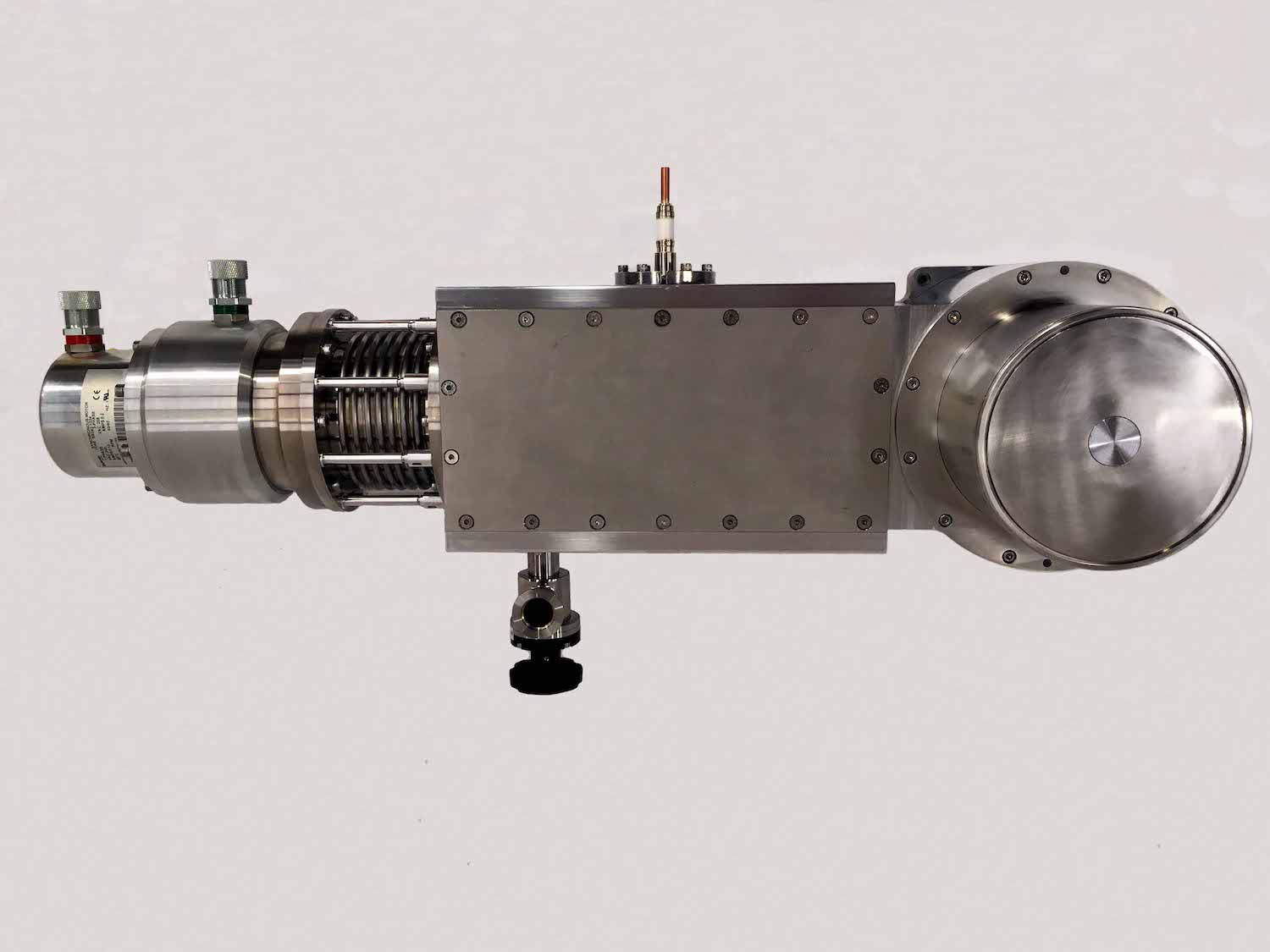

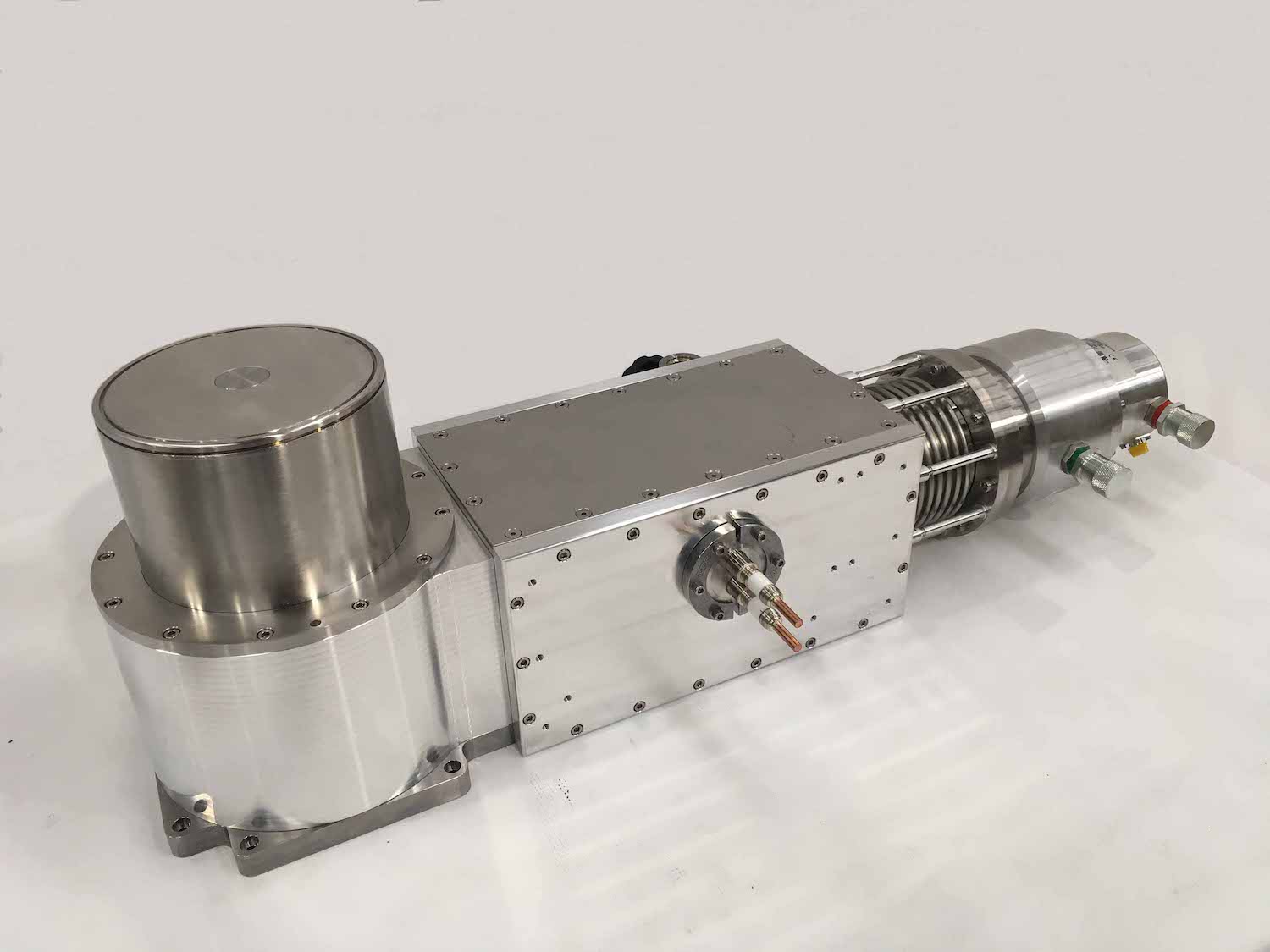

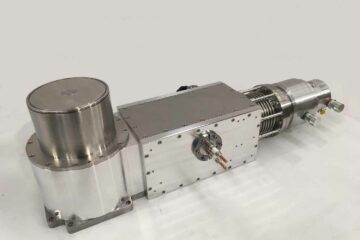

2T Projected Field Magnet

HTS-110’s projected-field magnet is designed for a variety of applications which need unlimited access to a sample above the magnet surface. Combining its peak field of higher than 2.5 tesla above the pole tip, its compactness allows this magnet to be easily integrated into complex systems such as magnetic probing systems, scanning probe microscopy (SPM) and scanning tunnelling microscopy (STM).

Features

First-generation (PF-1G) and second-generation (PF-2G) models available
Cryogen-free
Compact: 15 and 55kg models
> 2.0 – 2.6 T peak field about the pole tip
Ramping time less than 1 minute
Excellent sample access
Large uniform field area in the radial direction
Low vibration
Sample can be mounted independent of the magnet, ensuring no vibration coupling.

Applications

Magnetic probing systems
Scanning Probe Microscope (SPM)
Scanning Tunnelling microscope (STM)
Atomic Force Microscope (AFM)
Magnetic Force Microscope (MFM)
Magneto-optic measurement
Hall effect measurement

Options

External pole to refocus magnetic field in sample environmental shielding

R&D Tool

Spintronics & Magnetic RAM
Magneto-resistive read/write products

Model Specifications

Model

Peak field

Magnet inductance

Max. current

Ramp time

Mass

Power requirements

PF-1G

2.6 T 1mm above the top surface

0.2 H

200 A

1 min

55 kg

3 phase 3.6kW-5.6 kW

PF-2G

>2.0 T 2mm above the top surface

0.2 H

70 A

< 1 min

15 kg

Single phase <400 W

Model Selection

Our Projected Field HTS magnet platform is shared between models constructed with first-generation (PF-1G) and second-generation (PF-2G) superconducting wire.

PF-2G adds extreme efficiency and commercial usability to the proven PF-1G platform, reducing power consumption by a factor of 10 allowing you to use a standard single phase electric outlet. The mass is also reduced from 55 kg to 15 kg giving you a true benchtop HTS magnet.

PF-1G retains an edge in peak field generation, but outside of specific use cases we would suggest specifying the PF-2G model for the lower total cost of ownership, improved commercial usability and reduced environmental impact.

PF-custom offers you a fully bespoke magnet design for your application and can be built on the HTS Projected Field platform or refined from a specific model.
